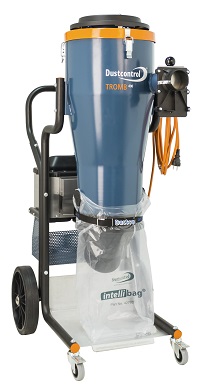

DC Tromb 400c
Category: Mobile Dust Extractors
Description
Dustcontrol Canada is pleased to introduce our most powerful single phase(120V) dust extractor to date, the DC Tromb 400. With a complete design overhaul the DC Tromb 400c is capable of inlet flows up to 320 m³/h, making it the perfect extractor for larger handheld tools, medium sized floor grinders or general cleaning. To ensure the end user receives the highest level of filtration the DC Tromb comes with a newly designed 2.5 m²(27 ft²) fine filter and massive 2.2 m² (23.7 ft²) individually certified HEPA filter. For coarse dust separation the DC Tromb 400 has an all new efficient cyclone mounted on a robust chassis. Another improvement from our previous single phase workhorse (DC3900) is a semi-automatic filter cleaning mechanism operated by simply flipping a switch and closing the inlet valve. As with our other single phase units the DC Tromb 400c comes with a filter indication light.
The DC Tomb 400 can be ordered with a plastic bag (DC Tomb 400c), a steel container (DC Tromb 400a) or longopac (DC 3900L). Collection in a steel container is ideal for sharp materials such as metal chips.
All of Dustcontrol Canadas machines are CSA approved
Part No. 161507
Delivered with
- Antistatic hose set Ø2″ /50 mm x 15’/5m (Part No’s 2013 +2107 +2129)
- Aluminum floor tool B 500, Ø50 mm/2″ (Part No 7238)
- Chrome steel wand Ø50mm/2″ (Part No 7265)
- Plastic sacks (Part No 43619)
- Fine filter, polyester (Part No 44017)
- HEPA H13 filter (Part No 44016)
- 120v (20A) outlet plug
Technical Data
| Weight (lb/kg) | 101/46 |
| H x W x D (in/cm) | 54″x22″x27″/139x56x70 |
| Max Q, cfm/m³/h | 212/360 |
| Flow at Open Inlet Max, cfm/m³/h | 188/320 |
| Max vacuum, inwg/kpa 115 V | 80/20 |
| Power consumption max 115 V | 2100W |
| Sound Level | 70 dB(A) |
Documents
Accessories
7238 Ø50mm(2″) Floor Nozzle
7265 Ø50mm(2″) Chrome Wand
44017 Polyester Pre-Filter
44016 HEPA Filter
44043 Cellulose Pre-Filter
Hose Set – Order 5m 2013 hose + 2129 End Cuff + 2107 Coupler
Replacement Bags 4314 Pack of 50
Replacement Bags 43619 Roll of 10
Dustcontrol Canada is pleased to introduce our most powerful single phase(120V) dust extractor to date, the DC Tromb 400. With a complete design overhaul the DC Tromb 400c is capable of inlet flows up to 320 m³/h, making it the perfect extractor for larger handheld tools, medium sized floor grinders or general cleaning. To ensure the end user receives the highest level of filtration the DC Tromb comes with a newly designed 2.5 m²(27 ft²) fine filter and massive 2.2 m² (23.7 ft²) individually certified HEPA filter. For coarse dust separation the DC Tromb 400 has an all new efficient cyclone mounted on a robust chassis. Another improvement from our previous single phase workhorse (DC3900) is a semi-automatic filter cleaning mechanism operated by simply flipping a switch and closing the inlet valve. As with our other single phase units the DC Tromb 400c comes with a filter indication light._x000D_
_x000D_
The DC Tomb 400 can be ordered with a plastic bag (DC Tomb 400c), a steel container (DC Tromb 400a) or longopac (DC 3900L). Collection in a steel container is ideal for sharp materials such as metal chips.
