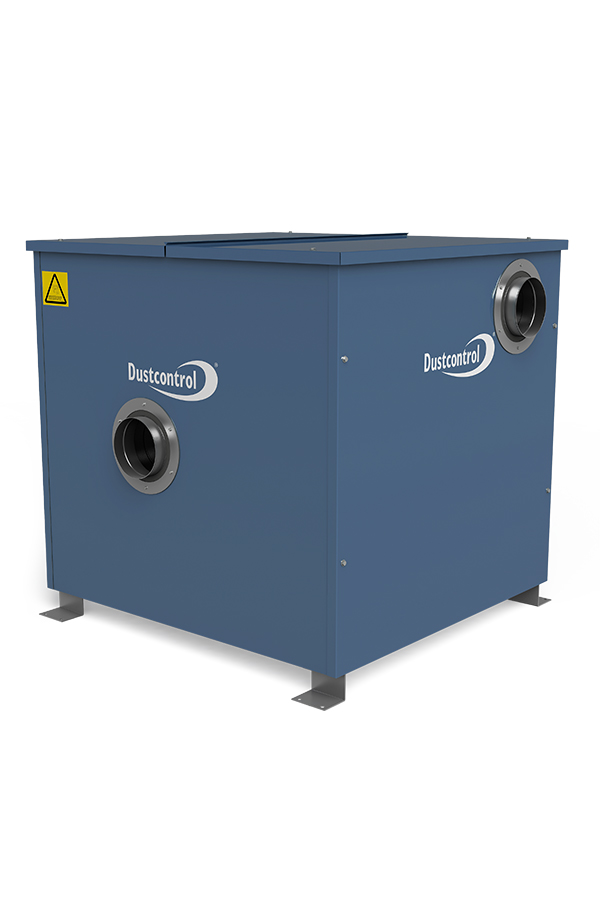

RAF 2501
Applied in extraction systems requiring large air flows for lighter types of dust and cleaning.
Category: Central Vacuum Systems
The RAF 2501 is applied in extraction systems requiring large air flows for lighter types of dust and cleaning. Pressure generation is achieved through two series connected stages.
| TECHNICAL DATA | RAF 2501 |
| Motor [kW/hp] | 30/40 |
| Pump [rpm] | 3000/3600 |
| Weight [kg] | 440 |
| Max dP [kPa] | 17 |
| Flow max [m3/h] | 3300 |
| Sound Level of Unit 1 m [dB(A)] with exhauste silencer | 74 |
| Inlet [∅ mm] | 200 |
| Outlet[∅ mm] | 160 |
