RAF 2502
Applied in extraction systems requiring large air-flows such as systems for fume extraction.
Category: Central Vacuum Systems

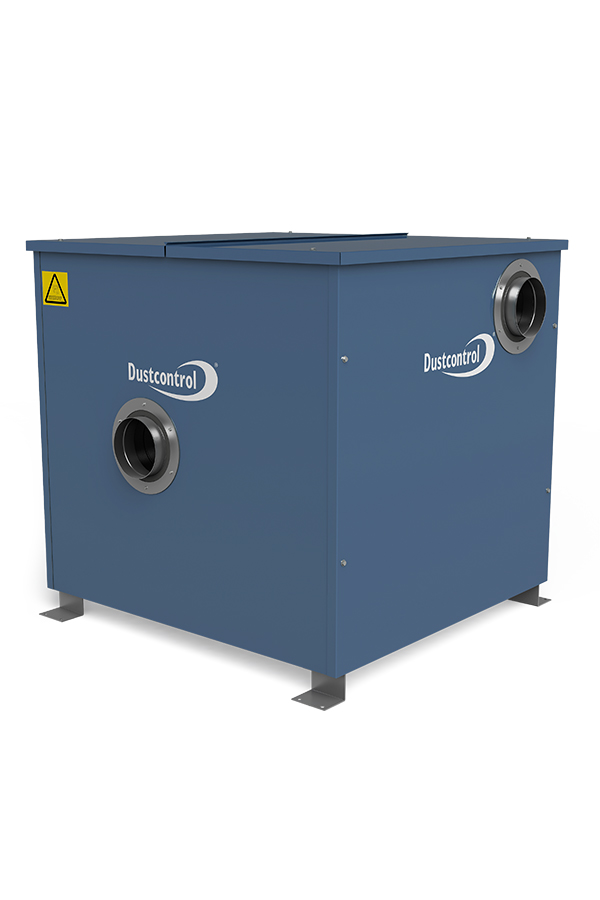

The RAF 2502 is applied in extraction systems requiring large air-flows such as systems for fume extraction. RAF 2502 work with two parallel impellers. The unit is equipped with vibration isolation and a silenced enclosure. The unit should always be equipped with an exhaust silencer (inlet also if required). The unit is direct driven and has minimal service requirements (lubrication interval 10000 hours).
| TECHNICAL DATA | RAF 2502 |
| Motor [kW/hp] | 30/40 |
| Pump [rpm] | 3000/3600 |
| Weight [kg] | 430 |
| Max dP [kPa] | 9.4 |
| Flow max [m3/h] | 6200 |
| Sound Level of Unit 1 m [dB(A)] with exhauste silencer | 74 |
| Inlet [∅ mm] | 2 x 200 |
| Outlet[∅ mm] | 2 x 160 |
