SUCTION CASINGS FOR HAMMER DRILLS, CHISELS AND BREAKERS

Suction Casings Depressed Center Wheels, Abrasive Discs and Diamond Discs (N,K)
Get Quote Now
Category:
Tool connection Ø D (in/mm) Hose connection (in/mm)
2.4’’/61 1.5’’/38 7’’/178 6078
1.9’’/48 1.5’’/38 6.2’’/158 6621
1.7’’/43 1.5’’/38 6.2’’/158 6622
1.25’’/32 1.25’’/32 4.4’’/112 6077

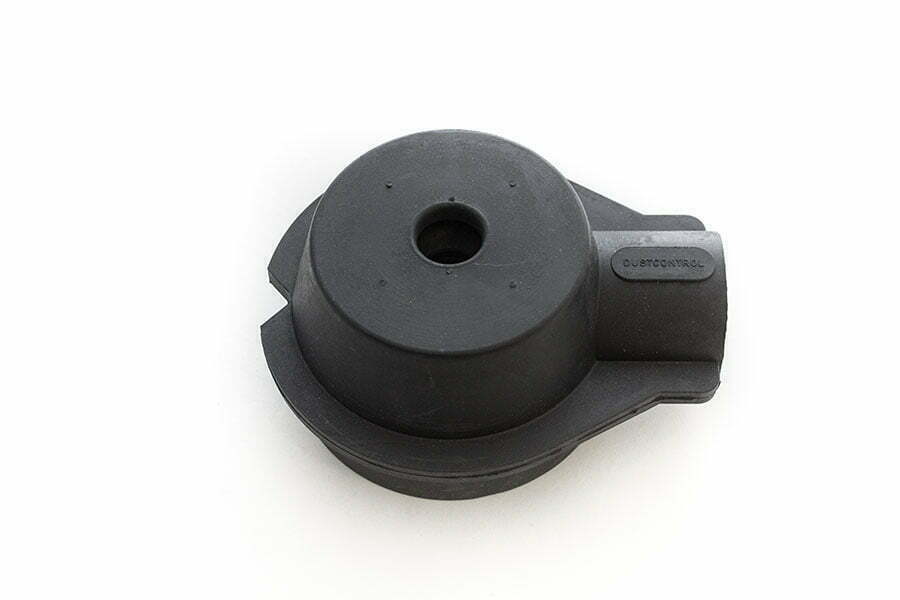

– 2’’/50 3.9’’/100 6001
Bellow to part no 6078, 6621, 6622 6130

Note: For longer points or hammer drill bits, use two or more bellows, Part No 6130. These will slip on to each other.

Model-specific suction casings
Part No Model Hose connection Ø [mm/in]
6229 Atlas Copco RRD 37/RRD 57 38/1.5
6152 Atlas Copco BBD 11/RRC 73 38/1,5



TECHNICAL DATA
Head Con. Q nom ∆ p nom
Small hand-held tools ø1.25″/32 mm 90 cfm/150 m3/h 14 inwg/3.5 kPa
Hand-held tools ø1.5″/38 mm 120 cfm/200 m3/h 14 inwg/3.5 kPa
Large hand-held tools e.g. 9’’
depressed centre disc		 ø1.5″/38 mm 150 cfm /250 m3/h 20 inwg/5.0 kPa
